Aluminium exterior panel door SCHÜCO AD UP 90.SI
A PREMIUM product for sophisticated needs
- Maximal system performance for property and apartment buildings
- Number of selectable functions and individually selectable modules
- Enhanced insulation zone and the best possible heat installation
- Security class up to RC 2
- Double-sided attachment panels SCHÜCO included in the price
Insulation
Uf = 1,1 W/m²K
Ud = 0,67 W/m²K
Security
up to RC2
Building depth
90 mm
€ 3430 , - /Stk. € 4287 , 5 /Stk.
1 wing door 1000/2100mm
*Beachten Sie unseren QUANTITY DISCOUNT
Direkt vom Hersteller
FENSTERNORM - manufacturer and deliverer of windows and doors of high-quality Trocal and Schüco profiles.
Technical details
House door with panel Schüco AD UP 90.SI – product benefits
- High stability thanks to a foundation depth of 90 mm
- Uf-values of 1.1 W/m²K, Ud up to 0.67 W/m²K - suitable for passive houses
- Leaf weights up to 160 kg can be supported
- Enhanced insulation zone with foam filling
- Better impermeability thanks to the circulating middle sealing
- Thermal insulation of the glass rebate
- Hybrid composite between insulation web and outer profile in the leaf for avoidance the bi-metal effect
- A barrier-free and thermally-separated threshold
- Increased sound insulation and driving rain impermeability
- Double-sided aluminum attachment panel included in the price
- Inwards and outdoors opening available
- Fixing of fittings without interruption on the middle seal level
- Break-in resistance up to WK2 (RC 2) possible
- Custom design option, great variety of colors and models
- 1-fold locking: bolt latch lock or roller latch lock
- 5-fold locking: 'SafeMatic' or swing hook bolt lock
- Barrel hinges and drafted hinges available
- Compatible to window System Schüco AWS 90.SI+
- Max. leaf width of 1250 mm up to maximum casement height of 2500 mm reachable
- Anti-panic lock production range and diverse special equipment optionally available
- High-quality standard equipment
Aluminium exterior panel door SCHÜCO AD UP 90.SI Modelle
Aries
Aries-R
Balla
Balla-R
Carina
Conna
Conna-R
Coparo
Estoque
Fluento
Lunea
Lunea-R
Perla-R
Ravis
Remon
Remon-R
Revere
Revere-R
Riva
Riva-R
Stylus
Construction forms preview
Individual design
High-quality standard equipment in a wide range of accessories
The aluminium house door AD UP 90.SI shows high quality and diversity even in its standard version. Upon enquiry, we can update your door with even more comfort and security.
A thermally broken threshold is already included in the price. The aluminium threshold is solid and suitable for barrier-free living.
The annoying trip hazard isn't necessary anymore and this facilitates the entrance and exit through the house door. This comfort will be particularly profitable for older people and small children.
A stainless step protection sheet on the bottom for additional security and longevity of the door. Thanks to the metal app the front panel in the footer area is better protected against scratches and bulges.
This application is particularly recommendable for families with children and pet owners.
We recommend you use the laminated wire glass which reduces the risk of cutting damage if the door breaks which will hold together the pieces in a special foliation.
We offer skylights for bright hallways and entrance areas. The skylight can be equipped with an energy saving electric opener. Both options are available upon enquiry.

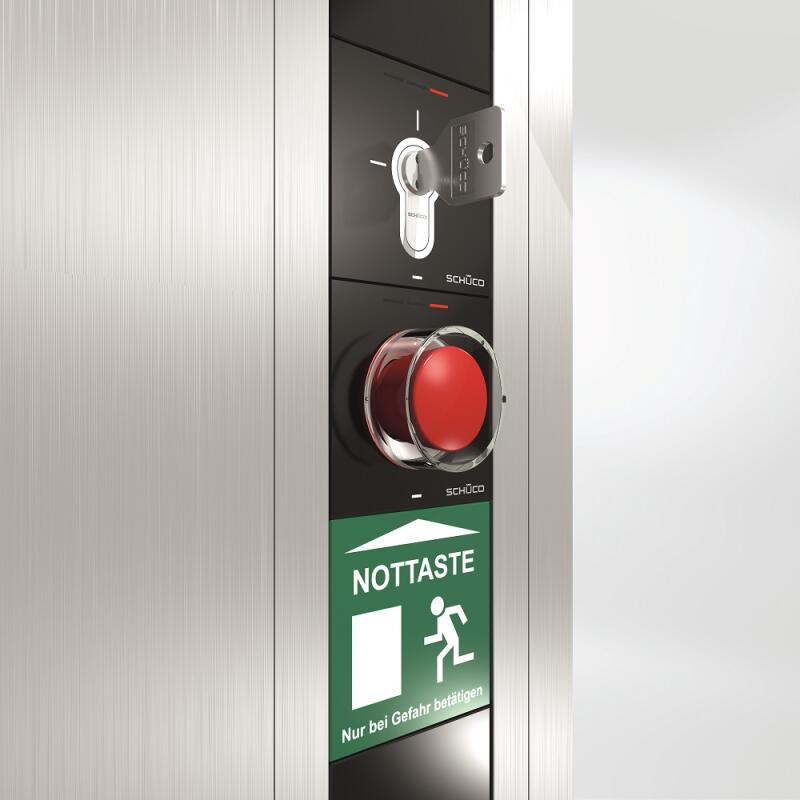

The doors for rescue and escape routes can be unproblematically equipped with panic fittings that make a fast opening in emergency situations possible. We have developed designs with door handles and a cross bar. The right handles are used in hospitals, schools, kindergartens, airports and shopping centres.
Alarm contacts with a magnetic switch serve as an extra safety-plus triggering an alarm even when there is a very small opening of only a few millimetres.
Door closer from Geze guarantees an easy soft noiseless closing of doors and leave slamming doors in the past.
Aluminum door handles are included in the price and stainless door handles are available upon enquiry.
A peephole gives you the opportunity to see who is in front of the door without opening it. The standard assembly height is about 155 cm from the bottom of the door.
Product properties
Exterior Panel Door AD UP 90.SI for high demands
Nowadays an entrance is much more than a barrier between inside and outside. It acts as a calling card of a building and it must perform perfectly in terms of both functionality and aesthetics. The demands on doors have increased enormously in recent years and the aluminium door ADS 90.SI manages to comply the current high criteria of planners and private customers.
The house doors from solid aluminium are characterized by high weather resistance and security. The corrosion resistant material has a very long service life. In addition, aluminium doors and windows don't require special maintenance. It's enough to clean them with a cloth and lukewarm water.
Because of the wide range of design opportunities Schüco AD (Aluminium Door), aluminium doors can be adapted to your personal ideas and the special characteristics of the building. On the one side, it is possible to adapt the look of the door to the entire home façade thanks to different fillings. On the other hand, all aluminium doors from Schüco can be upgraded with high-quality accessories in accordance with customers' wishes.
The house door AD UP 90.SI scores with high anti-burglar resistance that can be increased with additional accessories up to resistance class RC 2. Schüco offers modern locking systems which help you to adapt your door to your personal security needs.
The inside opening flush mounted door construction is particularly suitable as a side or main entrance. The design and technical components of Schüco doors can be planned individually.
Excellent thermal insulation for a comfortable living environment

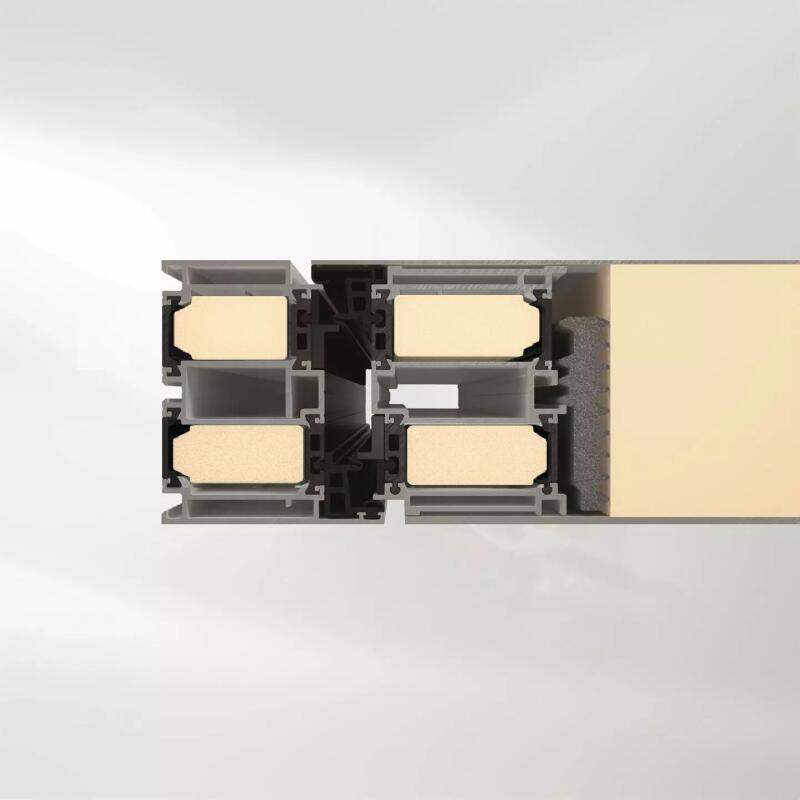

The aluminium house door AD UP 90.SI belongs to the category Super Insulation (SI). The thermal insulation coefficient for standard doors reaches 1.4 W/m2 K and up to Ud-0.67 W/m²K. These values can be reached thanks to the foam filled insulation zone and the use of glass sealing. Excellent thermal insulation is provided thanks to the circulating middle sealing and the door filling also. A double-sided aluminium attachment panel is included in the price. High quality fillings are highly insulating and stop the cold. The excellent heat insulating qualities of the house door ADS 90.SI meet the most modern requirements for energy saving living and reduce the expenses for heating in the inside rooms significantly.
Structural details – A wide variety of Door Hinges from Schüco
Door hinges must carry the weight of a metal door and withstand high stresses when opening and closing. The door hinges from Schüco don't have any problem with up to 200 kg heavy doors and show enormous durability of over 500 000 test cycles during tests. An additional advantage of the innovative door hinges is the possibility for 3D adjustment without hanging out the heavy door wing.
Performance without hanging out the heavy door leaves.
- The price includes heavy roller blinds and they are seamlessly integrated int0 the overall appearance of the aluminum house door.
- Surface-mounted hinges are available upon enquiry, our classic. Our high-power tapes convince with their look and loading capacity.
- The completely hiding door hinges are an additional design possibility which meet the highest demands on appearance and security. We offer it for the door series ADS 75.SI.
Locking technology for more security and comfort
The demands on the looking technology are growing year by year. On the one hand the door locks must provide maximum safety and on the other hand they must be easy to handle. In addition, locking systems are expected to provide the highest function of security for decades and to remain easy to maintain or even maintenance free.

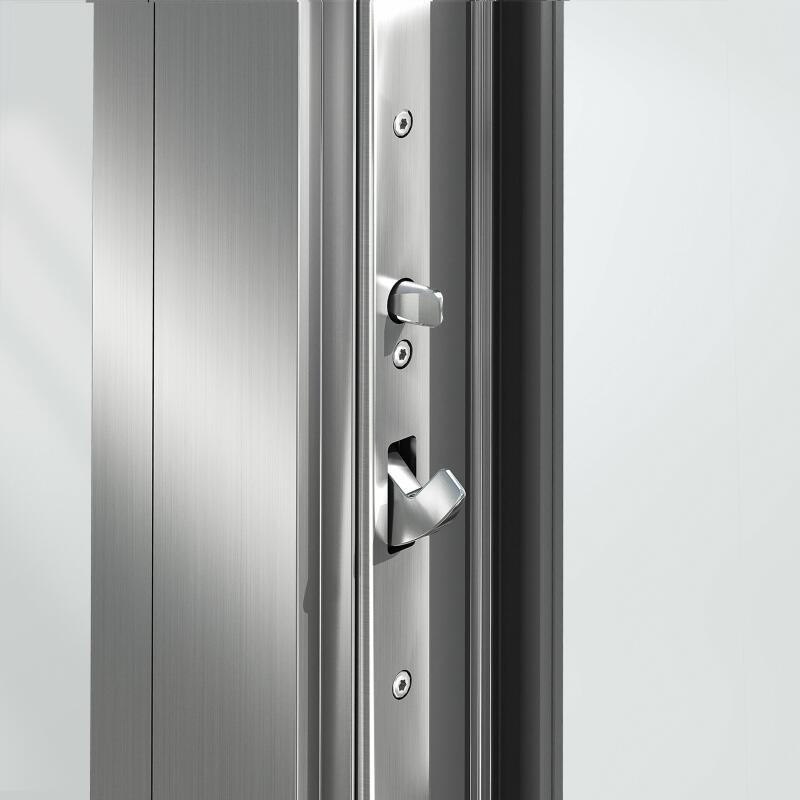

- We provide the Doors AD UP 90.SI with 5-point slam lock of the type "SafeMatic“ from Schüco. Its automatic interlocking guarantees optimum security against break ins. Even by closing the door without keys the automatic lock interlocks the door on four points. If the key is also turned the number of the interlocking points rises to 5 (the main lock and an additional four).
- Optionally, we offer 5-point slam lock with steel bolts and hook bolts. Besides the main bolt in the centre, there are two additional steel bolts which drive up and down to the both hook bolts. With this mechanism, it is even possible to reach the resistance class RC 2.
Lock cylinders with three keys are included in the price. In addition, you have the option to order additional keys through our product configurator.
An E-Opener (electric door-opener) opens a door at the touch of a button or for example after entering the correct numerical code. Electronic opening doors are very practical solutions for hospitals or retirement homes. It can be ordered additionally.
Access control thanks to the automatic Door Control System
The house door AD UP 90.SI opens only for owners and friends of the house and it remains closed for unwelcome people. We can upgrade the door with an automatic entrance control which is built on a module concept and is problem free customisable. It is possible to combine to modules.
- Card reader: Instead of keys you have a RFID-card which you can store in a space saving way in your pocket.
- Keyboard: You can open the door by entering 4 or 6 digits. Even in this case, keys remain unnecessary, so you don't have to worry whether you lose them or not.
- Fingerprint mechanism: DCS-Fingerprint-module uses Bluetooth technology and can be managed via Android or iOS-App. The undisputed advantages of the door control modules: You can’t lose your finger and you don't have to memorize a combination of numbers. If you wish you can create various profiles and delete them at any time.
Optional equipment – setting personal accents
The following versatile accessories are available upon enquiry for the aluminium doors AD UP 90.SI.
Practical door stoppers for fixing an open-door leaf.
Optimal functionality and security offered by integrated swing door drives from Schüco. Swing door drives are a good solution everywhere where manual opening and closing of the door is almost impossible. This is the case with heavy doors or for living concepts for disabled people.
Optional supply modules. We offer you a high-quality equipment for the entrance area.
The house number must be fixed in a well visible position in order to make it easier for a postman or emergency doctor to find your house easily. LED-Spots are all-weather and in addition energy-saving lighting Concepts for the entrance area. An additional useful element could be a motion detector on which you can attach an alarm light. In this way you will not need constant lighting in the entrance area.
The entrance area has a welcoming look when it is designed in a harmonized manner. Therefore, FENSTERNORM has house numbers in its range whose design is perfectly adapted to AD UP 90.SI. Additionally, the entrance area must be very well illuminated. This has not only aesthetic reasons but it a matter of security also.
Door communication for a feeling of safety. Visitors can enter only after a short interview. If you wish you can add a video camera to the door communicator for even more security. The device is secured against any abuse and satisfies with an appealing look.
Integrated door closer Schüco helps to close the door in a silent and smooth way. Loudly slamming doors belong to the past.
Radio control for even easier operation of the house door Schüco ADS 90.SI which helps to open the door by using a remote control. Modern security solutions hinder abuse and the device is used by unauthorized persons only.
With a few mouse clicks to the desired door
FENSTERNORM uses not only over modern machinery but we are also proud of our technicians with long experience. We combine a long artisan tradition with contemporary technical equipment and deliver windows and doors in premium quality in accordance to the requirements and wishes of our customers. In order to help you to find the right door, FENSTERNORM has created an intelligent online product configurator. It is free and intuitive.
