PVC-aluminium window Trocal 76 AluClip
Trocal 76 AluClip: Contemporary window solution for demanding customers
- A successful combination of the benefits of two materials - synthetics and aluminium
- The windows let a maximum of light and reduce the street noise to a minimum
- Excellent warm insulating qualities
- The window profile combines technical perfection and elegant modern design
Insulation
Uf =1,1 W/m²K
Uw up to 0,76 W/m²K
Security
Up to RC2
Profile system
5 chambers
€ 367 , - /Stk. € 458 , 75 /Stk.

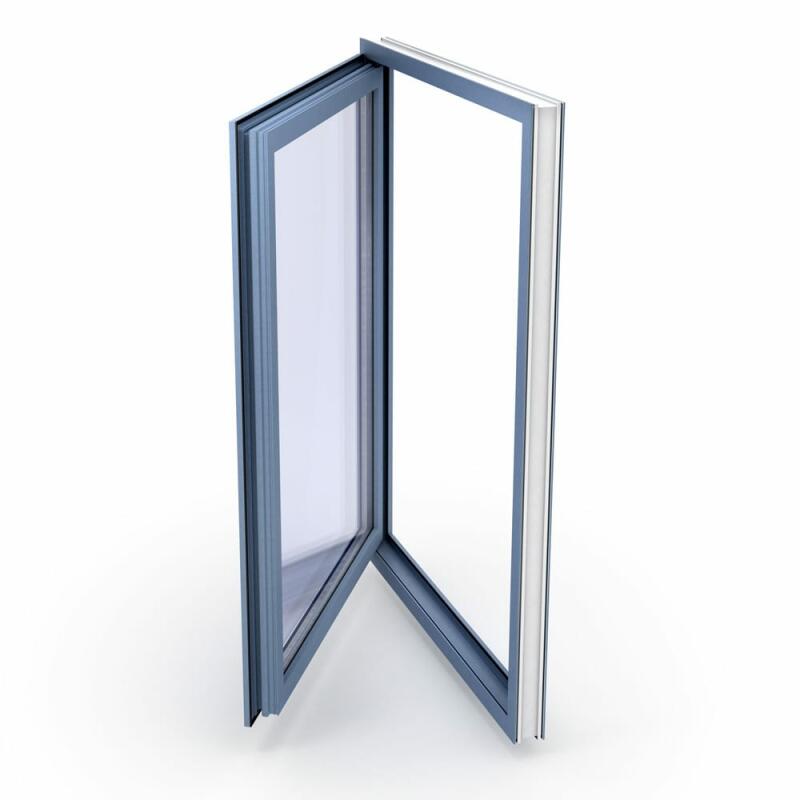

1 wing window DKR 900/1100mm
*Beachten Sie unseren QUANTITY DISCOUNT
Directly from the manufacturer
FENSTERNORM - manufacturer and deliverer of windows and doors of high-quality Trocal and Schüco profiles.
Technical details
Spec sheet of the window Trocal 76 AluClip

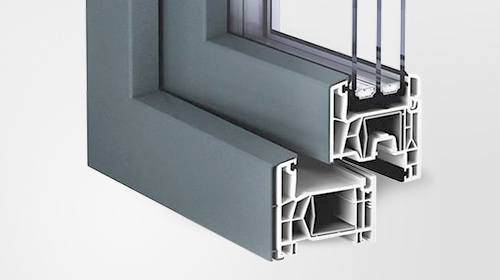

- 83 mm of construction depth (76 mm profile, 7 mm aluminium cover)
- High heat insulating window profile
- Modern sealing system
- Uf value for a standard window 1,1 W/m²K
- Uw value up to 0,76 W/m²K possible
- Joining profile height - 30 mm
- Glass thickness up to 48 mm and triple glazing possible
- Anti-burglary protection up to resistance Class RC2 (WK2)
- 5 chamber construction with steel reinforcement
- Sound insulation up to 47 dB, Rw,P
- Warm edge spacer from Swisspacer/Thermix available
- Aluminium cover in all RAL colours available, PVC profile in Classic white
- Face width for shutter with window frame up to 108 mm
- Face width for astragal windows up to 126 mm
Individual design
Glazing
- Double
- Triple
- ESG
- VSG
- Sound insulation
- Insert panels
Special types
- Triangle
- Conical
- Round arch
- Segmental arch
- Round/Semicircular
- Diagonal
Opening types
- Tilting
- Rotary tilt
- PSK
- Folding
Product features
System properties
Aluminium is weather resistant, timelessly elegant and open to various design possibilities. The insulating properties that can't be reached from raw materials can be achieved thanks to PVC. With Trocal 76 AluClip you receive a reliable material mixed system that contains PVC and aluminium. The high-quality products of Trocal meet the highest requirements of the modern Window Systems. The fast and clean exchange of other windows for Trocal 76 is possible thanks to diverse assembly techniques.
The high-quality products respond to a high level of aspiration for modern Window Systems. The fast and clean exchange order windows for Trocal 76 is possible thanks to the advanced assembly techniques.
Improved statics and elegant face widths
The window profile Trocal 76 AluClip AD with building depth of 76 mm is perfectly suitable for new construction or rehabilitation of properties. Narrow face widths allow for maximum illumination and create an elegant and weightless look.
Depending on the model the face widths vary between 108 and 126 mm.
An important notice to customers: With the introduction of the profile Trocal 76 AluClip AD the building depth of 76 mm is becoming a standard and we have stopped the production of the profile type AluClip A5. These kinds of profile have been exchanged for Trocal 76. The best is yet to come: The changeover to the new profile doesn't influence the price of the Windows system of the company FENSTERNORM!
Rebate seal system - Top-results fort thermal insulation
Customers expect modern windows to leave the cold outside and to keep the warm inside. At the same time, windows shouldn't be airtight because air circulation is necessary for the feeling of comfort and the prevention of mould formation. The window profile Trocal 76 AluClip AD is enough as a standard with its Uw – value of 1.1 W/m2 K. Depending on the glazing you can reach your own values of 0.76 W/m2 K. In this way, Trocal 76 AluClip supports environmentally conscious living and helps to save on heating costs.
A cosy atmosphere thanks to reliable noise protection
Nowadays window systems not only prevent heat loss, do not leave humidity into the room and stand successfully against storms, but they also build a reliable protection wall. The windows Trocal 76 AluClip guarantee sound insulation values of up to 47 dB, Rw, P for a relaxed living and working atmosphere. When the window gets closed you can immediately feel the difference: Even when a flat or house stand directly on an important route the atmosphere is still pleasant and relaxed.
Unwelcome visitors remain outside
The window profile Trocal 76 AluClip AD is perfectly suitable for inhibiting fittings for glazing with security glass. The window systems can be upgraded up to Resistance Class RC 2 according to the European norm DIN EN 1627.
Individual design and glazing
With the Trocal 76 AluClip it is possible to realise a wide range of window Solutions according to the individual style and desires of customers. There are many different options possible, such as for example tilt and turn combinations, French casement windows, window doors and glass façades. The glazing can be designed in many ways. Glass thickness up to 48 mm, double and triple glazing with security glass isn't any problem with this window profile. Glazing with clear frosted or structural glass is possible.
The windows Trocal 76 AluClip can be retrofitted with roller shutters with insect or insulation function upon enquiry.
Windows and doors manufacturers
FENSTERNORM isn't just a provider, but also a producer of windows and doors from the window profiles Trocal 76 AluClip AD. During production, the company puts a lot of effort into responding to the expectations of customers and to keep the highest industry standards. Customers not only define the measurements of windows and doors, but they can choose between different models of handles and fittings. We would, however, like to point out that this window profile is offered upon enquiry with plain or wooden structure foliation for the PVC inner sides if you order more than 10 pieces. FENSTERNORM - this means enormous design scope and ideas.
It is possible that you would need decision-making help from a professional. Experienced consultants are beside the customer with advice.
