Aluminium window Schüco AWS 90.SI+
Aluminium window Schüco AWS 90.SI+
- An ideal window solution on passive house level
- Elegant aesthetics thanks to the narrow face width
- High stability paired with low weight thanks to aluminium
- Super high insulation quality (SI)
Inslation
Uf from 0,7 W/m²K
Security
up to RC3
Construction depth
90 mm
€ 1177 , - /Stk. € 1471 , 25 /Stk.
1 wing window DKR 900/1100mm
*Beachten Sie unseren QUANTITY DISCOUNT
Directly from the manufacturer
FENSTERNORM - manufacturer and deliverer of windows and doors of high-quality Trocal and Schüco profiles.
Technical details

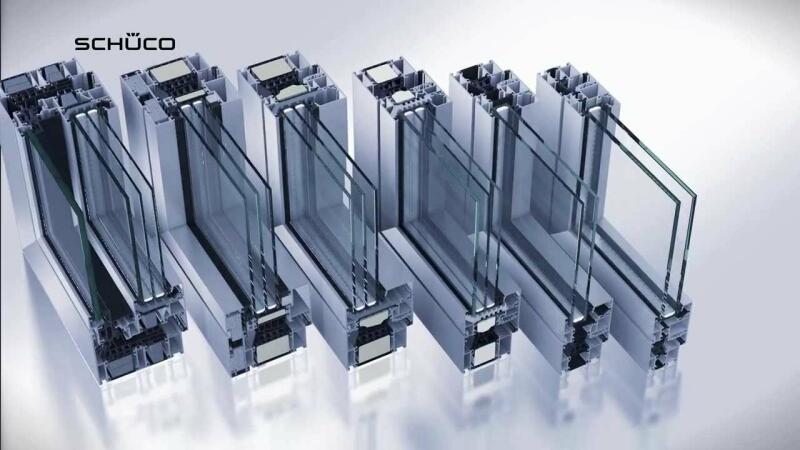

- Construction depth of the profile 90 mm
- Uf value from 0,71 W/( m²K) possible
- Uw = 0,8 W/(m²K), with Ug = 0,5 W/(m²K) and plastic spacer
- Coextruded middle gasket with fins
- An insulation zone with innovative foam-filled insulating bars
- Excellent noise insulation values up to 47 dB
- Driving rain impermeability Class 9A
- Wind load capacity Class C5/B5
- Air permeability Class 4
- Anti-burglary protection up to class RC 3
- Infill blind frames with adapter seal for glass thickness balance
- Inside positioned invisible fittings AvantTec
- Schüco TipTronic fittings up to 160 kg
- A wide range of profiles for multiple solutions
- Multicolour RAL profile design possible
- Thickness of the aluminium profiles: 2.2 mm, face width of 117 mm
- Perfectly suitable for the use of inserted panels also in highly heat insulated façades
- Aluminium window handles are included in the price; stainless steel handles are optional
- Compatible with door series Schüco ADS 90.SI/ ADS 90 PL.SI
Individual design
Glazing
- Double
- Triple
- ESG
- VSG
- Sound insulation
- Insert panels
Special types
- Triangle
- Conical
- Round arch
- Segmental arch
- Round/Semicircular
- Diagonal
Opening types
- Tilting
- Rotary tilt
- PSK
- Folding
Product features
Schüco AWS window solutions - innovation as a matter of principle
Today Schüco is a global player on the market with several branches and representations in over 80 countries in the world. Since as early as the 1950s the company has offered contemporary innovative solutions in the field of window and door systems. Window profiles from Schüco respond to the highest requirement regarding heat insulation, noise protection and anti-burglar security. The company sets new standards in future environmental protection and in the most cases it uses materials which comply with the criteria for sustainability.
With its AWS (Aluminium Window System) Schüco has reached a breakthrough in windows of the new generation. The aluminium windows from Schüco are even suitable for passive houses and in addition the profiles impress by narrow face widths and a wide range of design possibilities. In combination with hidden fittings AvanTec it is even possible to reach transparent models of up to 160kg.
Heat insulation as a core feature of AWS 90 SI+
The aluminium window Schüco Alu-Fenster is equipped with Super Insulation (SI) heat insulation values. This means that there is a minimum of heat loss but at the same time, there is optimal air circulation. There is a very pleasant, cosy atmosphere there are no draughts, the air isn’t sticky, and the heating costs remain low. The excellent heat insulation is both a contribution to Environmental Protection and to the reduction of current expenses of a family or company.
The values over 0.71 W//mq K can be implemented through multi-chamber construction, extended insulations and additional heat sealing of the glass rebate.
Tranquillity, it is silent thanks to excellent sound insulation
The window Schüco AWS 90 SI+ shows very good sound insulation values up to 47 dB. This means that the noise level can be reduced by 47 decibels. Modern windows stop up to 90% of the street noise which means that even on a busy crossing or commercial street there is a relaxed atmosphere that help you to concentrate perfectly.
Anti-burglar protection as a main priority!
Schüco pays particular attention to anti-burglar protection. The invisible external fittings of the type Schüco AvantTec SimplySmart are very helpful. These fittings and the narrow gaps make it difficult for burglars to enter your home and office. The window profiles of the type Schüco AWS 90 SI+ can be upgraded with mechatronic fittings TipTronic which additionally increases the security. Security glazing is a further burglar resistant measure.
Architectural upgrades of the building facades
The window Schüco AWS 90 SI+ impresses with its almost weightlessness and a wide range of design opportunities. Thanks to the aluminium profiles the windows can be produced in different sizes and shapes. With the profile Schüco AWS 90 SI+ you can design a large window front or a small attic window equally unproblematically. Complex geometries and multiple glazing are possible too. Tilt and turn combinations and French casement windows with or without sash bars and multiple-sashed windows are some of the several different options.
Aluminium - easy long lasting and luxurious
Aluminium is a lightweight material which has consequences for statics.
Everywhere, where large window areas are introduced, aluminium windows are the first choice. This is a solid material to which the weather conditions can hardly cause damage.
Even after decades, the windows of the type Schüco AWS 90 SI+ look like new. These kinds of windows are easy to maintain. You only need to clean them with lukewarm water and a simple cloth by using no or a non- aggressive, non-abrasive cleaning agent. The overall appearance of the windows with aluminium profiles is uniquely elegant because this material is characterised by taste and style.
Profile service from FENSTERNORM
Our company produces made-to-measure windows from the profile AWS 90 SI+ from Schüco. We use modern technique and manufactured products in compliance with the newest standards. FENSTERNORM – this is not only a wide range of windows and door solutions but a competent and supportive service. Our technicians are available to customers with advice and assistance and will support you to measure the exact sizes of the windows.
We will be glad to support you to find the right window Systems for you. The windows from FENSTERNORM can be upgraded with rollers, Venetian shutters and insect protection. With the windows of FENSTERNORM the customer has lots of freedom: Double or triple glazing, clear or frosted or structural glass - what do you prefer? The delivery will happen in the shortest time possible and the assembly will be in accordance with the current German ecological norm standard ÖNORM B5320.
