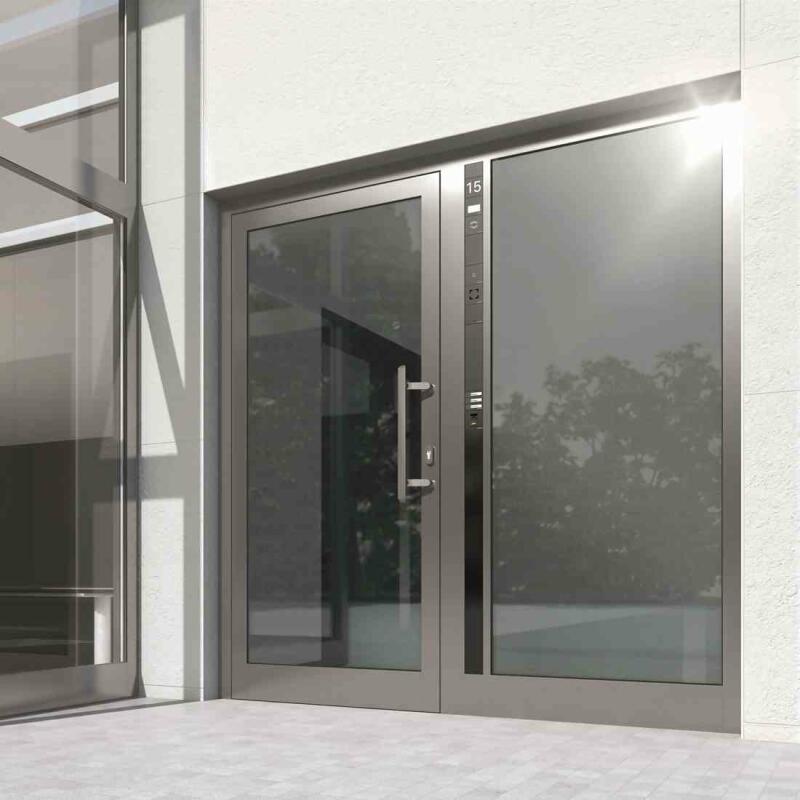

Aluminium Exterior Glass Door SCHÜCO ADS 75.SI
Entrance door SCHÜCO ADS 75.SI Aluminium –
an elegant, contemporary solution from the market leader Schüco
- A long-lasting and resistant material
- A timeless, simple and flush shape
- An innovative technique with the best heat insulation values
- Enhanced burglary protection and smooth handling
Insulation
Uf = 1,6 W/m²K
Ud = 1,1 W/m²K
Security
up to RC3
Building depth
75 mm
€ 2151 , - /Stk. € 2688 , 75 /Stk.
1 wing glassdoor 1000/2100mm
*Beachten Sie unseren QUANTITY DISCOUNT
Direkt vom Hersteller
FENSTERNORM - manufacturer and deliverer of windows and doors of high-quality Trocal and Schüco profiles.
Technical details
Aluminium entrance door Schüco ADS 75.SI - datasheet
- Door frame: building depth - 75 mm and visible width - 147 mm
- 3 chamber aluminium profile with foam filling
- Heat transition coefficient Uf = 1,6 W/m²K
- A barrier-free and thermally-separated threshold
- An option for an inset aluminium filling 50 mm
- Inwards and outdoors opening available
- Upgradable app to security class RC3
- An almost flush rosette
- An individual surface design
- Can be ordered without glass (optional)
- Glazing with a warm edge (spacer) available
- 1-fold locking: bolt latch lock or roller latch lock
- 5-fold locking: 'SafeMatic' or swing hook bolt lock
- Surface-mounted hinges, concealed hinges or barrel hinges available
- Compatible with Schüco window and the sliding door system AWS 75.SI/ASS 70.HI
- A leaf width up to 1250 mm and a casement height up to 2500 mm reachable
- Numbers panelling design and construction forms
- Easily integrable comfort and safety functions
- High-quality series equipment, additional components are optionally available
Individual design
High-quality series production and a variety of design versions
The Schüco Systems ADS 90.SI and ADS 75.SI are versatile and of a very high quality. Upon customers enquiry we upgrade our doors with even more comfort and security.
A standard profile cylinder with three keys is included in the price, you can order a further number of keys at an extra price with the help of our online configurator.
For the standard version, there is a solid aluminium threshold available. Due to its low height of 20 mm it is suitable for barrier free living. The heat insulated threshold in the bottom area insures reliable protection against driving rain and draughts.
A rust-free step protection sheet at the lower edge of the door protects the surface from unsightly scratches.
Optionally you can upgrade your door with laminated safety glass which reduces the risk of injury from cuts in the case of breakage thanks to a special technique through which shards stick to a special foliation. For even more heat protection we recommend the spacer Warm Edge from Swisspacer.
An E-Opener (electric door-opener) opens a door at the touch of a button or for example after entering the correct numerical code. Electronic opening doors are very practical solutions for hospitals or retirement homes.
A motor lock: This is an optional equipment that locks the door automatically after it's been closed. With this mechanism is an absolute guarantee that it will stay closed.
A skylight and side panels with a glass filling create a bright and cosy hallway. The skylight is available with a manual opener and upon enquiry it can be upgraded with an energy saving electric opener.
The doors for rescue and escape routes can be unproblematically equipped with panic fittings that make fast opening in emergency situations possible. We have developed designs with door handles and a cross bar.
Alarm contacts with a magnetic switch serve as an extra safety-plus triggering an alarm even when there is a very small opening of only a few millimetres.
A door latch at the top of the door ensures an easy and independent door opening and this eliminates draughts and slamming doors. Closing force and speed can be adapted to your personal needs.
Aluminium door handles are included in the price and stainless door handles and push handles for an individual design are available upon enquiry.
Product features
The aluminium entrance door ADS 75.SI for high demands
The demands on doors have increased significantly in recent years and the door Alu-Tür ADS 75.SI manages to respond to the expectations of architects and homeowners. Made of solid aluminium this product is characterized by long beauty and durability. In addition, aluminium doors and windows are practically maintenance-free. The dimensionally stable and corrosion resistant material has a very long service life and is very stable even under enormous strain. The entrance door ADS 75.SI is a high-tech product in regards to both function and design.
The door is characterized by anti-burglar protection which can be additionally increased thanks to optional accessories. The aluminium doors and windows are practically maintenance-free. You can just wipe them with a wet cloth.
A further advantage is the opportunity to customize ADS 75.SI to the ideas of the customers and the architectural specifics of a building. On the one side, you can change the look of the door with the help of inset panels and design the entire house facade in a different way. On the other hand, you can upgrade the aluminium door from Schüco with the help of additional components according to customers' wishes. Of course, the entrance door can be combined which further products from Schüco, such as for example, aluminium windows.
Heat insulation standard from the future
The aluminium entrance door ADS 75.SI from Schüco is a perfect example of an energy saving solution. The heat insulation coefficient of the standard version reaches 1.7 W/m²K and can be upgraded up to Ud-value of 1,1. These excellent values have been reached thanks to the intelligent construction with 3-chamber profiles with an isolating core. With FENSTERNORM you have the option for 50 mm insert filling that has a highly insulating effect and stops the cold.
The excellent heat insulation properties of the entrance door ADS 75.SI fulfil the modern demands on energy-saving living and decrease the cost of heating of internal spaces significantly.
New generations of hinges – easy assembly and excellent stability
Door hinges must carry the weight of a metal door and withstand high stresses when opening and closing. The door hinges from Schüco don't have any problem with up to 200 kg heavy doors and show enormous durability of over 500 000 test cycles during tests. An additional advantage of the innovative door hinges is the possibility of 3D adjustment without hanging out the heavy door wing.
You can choose between 3 different options: rolled barrel, surface mounted or hidden door hinges. All of them provide for secure and durable functions. The overlying door hinges, our classic solutions, are included in the price. They have impressive outer appearance and loading capacity. There are appealing elegant rolled barrel hinges available which fit seamlessly to the overall appearance of ASD 75.SI. A part of the range of our production is hidden door hinges which comply with the highest demands on aesthetics and security and provide effective protection against pollution and weather influences.
More protection through the locking systems from Schüco
The demands on the locking technology are growing year by year. Schüco offers entrance door security components up to resistance class RC3 (WK3). On the one hand, the door locks must provide maximum safety and on the other hand, they must be easy to handle. In addition, locking systems are expected to provide the highest function of security for decades and to remain easy to maintain or even maintenance free.
The more locking points the door has, the better it is protected against burglar attacks. We provide aluminium doors ADS 75.SI with a three-point slam lock from Schüco. Additional hook bolts under the main bolt (the main lock) provide additional protection.
Optionally, we offer a 5-point slam lock with offer steel bolts and hook bolts. It includes two combinations of hook and steel bolts and a main bolt (main lock). Besides the main bolt in the centre, there are two additional steel bolts that drive up and down to both hook bolts. With this mechanism, it is even possible to reach resistance class RC 3.
Within its range of products, Schüco offers a self-locking system with four self-locking system SafeMatic - 4 with a latchbolt and one bolt (the main lock). Multiple point locking is automatically activated with every opening or closing of the door. This interlocking technology is equally suitable for residential and industrial buildings and impresses with high security and uncomplicated handling. This looking system guarantees even with unlocked door resistance class RC2. Through additional manual locking, the main lock is closed, and this blocks the door handle.
Module accessories for key-free access
The entrance door ADS 75.SI from Schüco can be upgraded with biomedical technologies and effective keyless access control. The automatic Door Control System (DCS) is built on a module principle and thus it can be arranged in different ways without any problem.
- Card reader: Instead of keys you have a RFID-card which you can store in a space saving way in your pocket.
- Keyboard: You can open the door through entering4 or 6 digits. Lost keys are not a problem anymore.
- Fingerprint: DCS-Fingerprint-module uses Bluetooth technology and can be managed via Android or iOS-App. The undisputed advantages of the door control modules: You can’t lose your finger and you don't have to memorize a combination of numbers.
Additional equipment upon enquiry
ADS systems are equipped with practical door stoppers for fixing an open-door leaf.
Swing door drives are a good solution everywhere where the manual opening and closing of the door is almost impossible. This is the case with heavy doors or for living concepts for disabled people.
Radio control makes the easy operation of the house door Schüco Schüco ADS 75.SI possible which helps to open the door by using a remote control.
In addition, we offer you high-quality equipment for the entrance area. There is an option for a luminous house number, LED-spots for the internal and outer area or a sensitive motion sensor. All these functions are executed in an energy saving manner.
Die flächenbündige im Türrahmen integrierte Türkommunikation per Video oder Audio sorgt für ein sicheres Wohngefühl. Für den Außenbereich stehen Kamera, Mikrofon und Lautsprecher zur Wahl. Für den Innenbereich können Sie zwischen Stationen in Audio- oder Videoausführung wählen.
The concealed door closer with flat sliding rail allows independent and smooth door closing. Slamming doors belong to the past. Closing force and speed can be adapted to your personal needs.
With professional advice towards the right door
FENSTERNORM – FENSTERNORM stands for individual solutions for windows and doors, professional workers with many years of experience and for fast and flexible assembly.
We produce made-to-measure doors from the profile Schüco ADS 75.SI and respect all customers needs. Don’t hesitate to contact us and we will help you to develop a personal concept for your new entrance door.
