Aluminium Exterior Glass Door SCHÜCO ADS 90.SI Deluxe

Aluminium entrance door Schüco ADS 90.SI – stylish appearance and excellent system characteristics

  • ADS - Aluminium Door Systems from a market leader
  • Highly thermally insulated and suitable specifically for passive houses
  • Usable as apartment building door and property door
  • Optically attractive, numerous design opportunities

Insulation

Ud = 0,6 W/m²K

Security

up to RC3

Building depth

90 mm

5

ab 1531 , 79 /Stk. ab 1914 , 74 /Stk.

zzgl. 20% MwSt.

*Beachten Sie unseren QUANTITY DISCOUNT

Direkt vom Hersteller

FENSTERNORM - manufacturer and deliverer of windows and doors of high-quality Trocal and Schüco profiles.

Aluminium Best Preis

Technical details

Schüco ADS 90.SI Premium- data sheet and facts

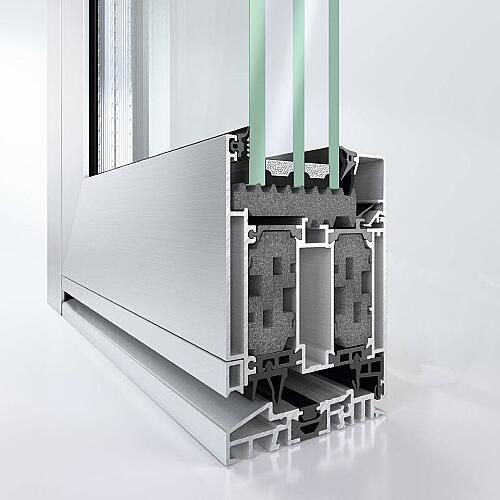

  • Building depth 90 mm for high stability
  • A face width of the door frame  - 147 mm
  • Triple glazing, Ug-value 0.76 W/m2 K possible
  • Sash weight up to 160 kg
  • Ud-value up to 1,4 W/m²K, up to Ud-0.6 W/m²K (suitable for passive homes)
  • A mechanism for prevention of Bi-metal effect
  • Ideal for a barrier-free living style thanks to the shallow threshold
  • Inwards and outdoors opening available
  • Three sealing levels for excellent heat insulation
  • 1-fold locking: bolt latch lock or roller latch lock
  • 5-fold locking: 'SafeMatic' or swivel-hook bolt lock
  • Surface-mounted hinges and barrel hinges available
  • Door closers with or without hold-open optional
  • Leaf dimensions 1.300 x 3.030 mm possible
  • Burglary protection up to security class (RC) 3 possible
  • Multiple point locking system with an opener is available on enquiry
  • Anti-panic function type in compliance with DIN EN 179 and EN 1125 available
  • High noise protection and driving rain security for maximum home comfort
  • Compatible with windows system AWS 90.SI+ from Schüco
  • For a continuous load of at least 500,000 cycles
  • A wide range of optional accessories available on request

Individual design

A standard and optional equipment – an overview of the possibilities

FENSTERNORM offers equipment in suitable, harmonious aesthetics. The aluminium house door ADS 90.SI shows high quality and diversity even in its standard version. Upon enquiry we can update your door with even more comfort and security.

A thermally broken threshold is already included in the price. With its flat and resistant design, they are ideal for barrier free living and everything that could cause tripping is avoided. Wheelchairs and strollers can move freely.

Aluminium door handles are included in the price and stainless door and push handles are available upon enquiry.

Laminated wire glass is not included in the price, but it is recommended. It reduces the risk of cutting if the door breaks which will hold together the pieces in a special foliation.

A stainless step protection sheet on the bottom serves not so much to the better the appearance, but rather for additional security and longevity of the door.  This application is particularly recommended to families with children and pet owners and in cases with enormously intensive use.

A door closer guarantees an easy soft noiseless closing of doors. It is recommended in order to avoid slamming doors which cause a lot of stress in everyday life.

An E-Opener (electric door-opener) makes the operating with doors very easy by just pressing one key and opening or closing from a distance.

The optimum skylight can be adjusted in different ways in order to reach a coordinated look with the appearance of the aluminium door. This would be an additional lighting in the floor. As a standard, we have a manually tiltable skylight and we have an electronic opener upon enquiry.

Panic fittings. They can be a life-saving solution because they will help to open the door in emergency cases. Panic fittings that can be made, for example, in the shape of cross bar belong to the standard series.

Alarm contacts. Alarm contacts are triggered even when the door is only slightly opened by an unauthorized person.  This optional equipment gives us a feeling of security and stops burglars.

Door stoppers prevent doors from slamming and help to close them smoothly.

Revolving door devices and door assistants are recommended for heavy doors and everywhere where manual opening and closing are difficult for some reason.

Radio control helps for even easier handling. The entrance door can be opened by using a remote control. Abuse isn’t possible due to several security features.

Door communication - this is an aesthetically pleasant door communications which contributes additionally to security. Visitors must identify themselves on the door before they enter, and this makes living simpler.

A peephole is a classic and even today a guarantee for your security. The visitors must identify themselves at the door before they enter.

Product features

Schüco - aluminium doors and windows from a company with traditions

Schüco stands for production of windows and doors in excellent quality for private houses and industrial buildings. Since as early as the 19th the company has belonged to the market leaders in the field of constructions and it is one of the main producers on the European market. From the beginning of its existence, Schüco has attached a high value to energy efficiency, security, easy handling and stylish appearance. Nowadays the products of this company are characterized by heat insulating qualities and by anti-burglary protection and impress with timeless elegance. The entrance door ADS 90.SI summarises this product's properties in the best possible way.

Highly heat insulating - helpful for the environment and our finances

SI is a shortage of Superinsulated. The entrance door Schüco ADS 90.SI belongs to this category and it impresses with excellent heat insulating qualities.

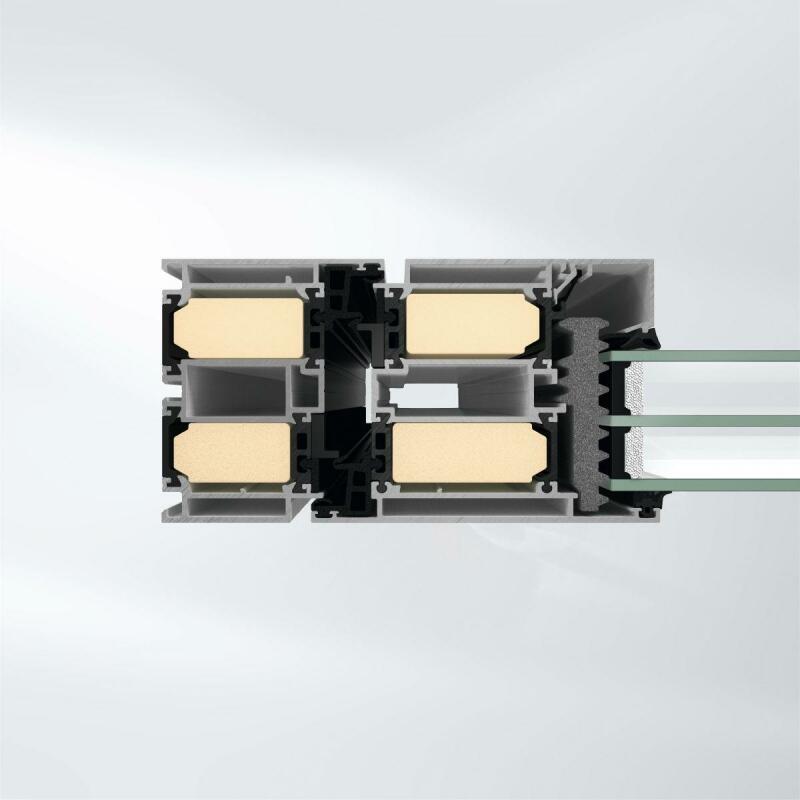

It stops wind, cold and helps to reach Uf-values of 1.4 W/m²K (up to Ud-0.76 W/m²K) and makes the doors usable for Passive house concepts. The low values of the heat insulation coefficient are possible to implement through a thought through insulation system. It includes extended insulation zones, circulating middle sealing and special glass rebate sealing. Thanks to triple glazing it is possible to reach an even higher heat insulation coefficient of Ug = 0.6 W/m²K until Ug-0.5 W/m²K, and heat insulation that corresponds with the modern requirements in this field of significant importance for the preservation of our environment and resources. High efficiency glass products contribute to the reduction of household costs.

An excellent locking system as a standard

In the first place, every entrance door is a reliable barrier which allows entrance to authorized persons. Thanks to the modern locking technology the entrance door Schüco ADS 90.SI stays closed and becomes a significant obstacle.

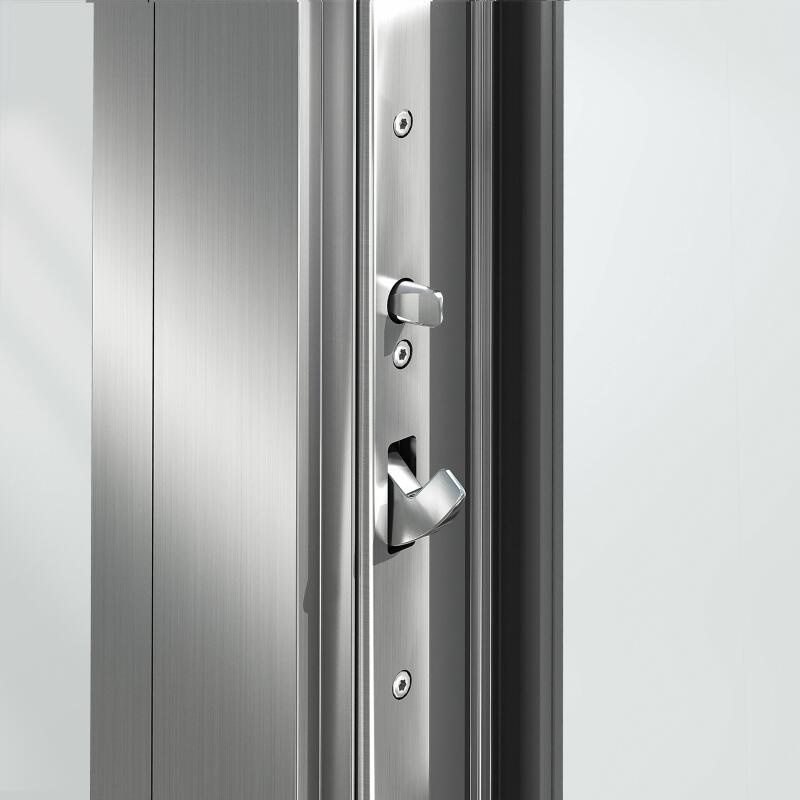

FENSTERNORM offers as a standard a high-quality 3-point locking system with a branded lock from Schüco. Here is the main advantage of the three-point locking system: The door is locked through 2 hook bolts which are integrated over and under the main bolt. For even more security we provide the doors ADS 90.SI Premium with a 5-point locking system. In addition, to the hook bolts over and below the main bolt this system has over 2 hard steel bolts. This locking system responds to the resistance class RC3 and provides strong anti-burglar protection.

The Premium entrance door from Schüco can be updated with the patented Security System SafeMatic. With every closing of the door, even when the key isn't turned, the door is locked on four points. When you turn the key, you have an additional locking point which is the main lock. While standard profile cylinders with three keys are included in the price, we are ready to produce an unlimited number of keys.

Drawer hinges - a secure connection between door and frames

Door hinges must carry the weight of metal doors and withstand high stresses when opening and closing. The door hinges from Schüco don't have any problem with up to 160 kg heavy doors and have shown enormous durability during tests. An additional advantage of the innovative door hinges is the possibility for 3D adjustment without hanging out the heavy door leaf. When you're planning your entrance door you can choose between 3 different options:

  • A triple aluminium surface-mounted hinges, our classical solution which is included in the price.
  • Optionally there are stainless deal roller blinds available which fit seamlessly to the overall appearance and can be adapted to the door profile line.
  • A further alternative is a completely hidden door hinge which responds to the highest antithetical and safety demands.

Door Control System – entrance in accordance with the highest security standards

The automatic door control is part of our optional equipment and you can operate with it your entrance door ADS 90.SI Premium. Door Control System (DCS) is a wooden model construction which opens numerous design possibilities.

  • Keyboard: A practical alternative to the common which you can install. You can open the door through entering 4 or 6 digits.
  • Card reader: Instead of keys you have a RFID-card which you can store in the same way as your ID or credit card in your pocket.

The DCS modules can either supplement or completely replace the traditional key - depending on the customer's requirements.

Creating a stylish and comfortable entrance area

FENSTERNORM helps you to create a harmonious appearance in your entrance area. For example, we offer visible and aesthetically sophisticated house numbers which fit to the appearance of your Schüco ADS 90.SI Premium door. Bright and efficient lighting is available and a perfect example for this are the practical LED-spots which is attached to a light. In this way, you can save on energy because it turns only when there is someone in the area around the door. This contributes additionally to anti-burglar protection.

FENSTERNORM - your partner for made to measure windows and doors

FENSTERNORM is a producer from the profile ADS 90.SI Premium in the exact sizes and respects all customers' wishes. You receive attractive standard equipment and a wide range of optional accessories.
We have professionals who use modern machinery and technicians with many years of experience. We are ready to help you to develop an overall individual concept that responds to the maximum of your personal wishes and needs for comfort and security.
