Raffstore Z-70 Comfort
Venetian blinds Z-70 Comfort - filigree appearance
- Simple installation and operation
- Optimal integration in the façade
- Wide colour variety for the slats
- Manual and automatic drive
- Individual daylight adjustment
Slat width
70 mm
Slat form
Z-edgy
Surface
scratch- and shock-proof
€ 512 , - /Stk. € 682 , 67 /Stk.
1000/1000mm Motor Somfy
*Save up to -28 % until 18/10/2026 with our discount promotion.
Directly from the manufacturer
FENSTERNORM - manufacturer and supplier of sun protection systems at the best price.
Technische Details
- Vormontierter Außenraffstore nach Maß
- Easy Montage und kinderleichte Bedienung
- Kratzfeste Alulamellen in Z-Form mit Bördelrand
- Stuffenlose Steuerung des Neigungswinkels der Lamellen

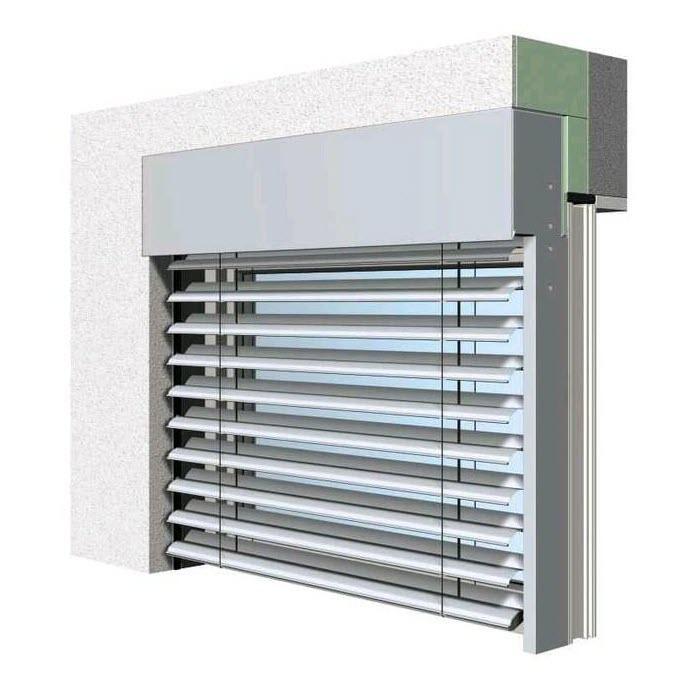

- Vorbaukasten mit Aluminiumblende

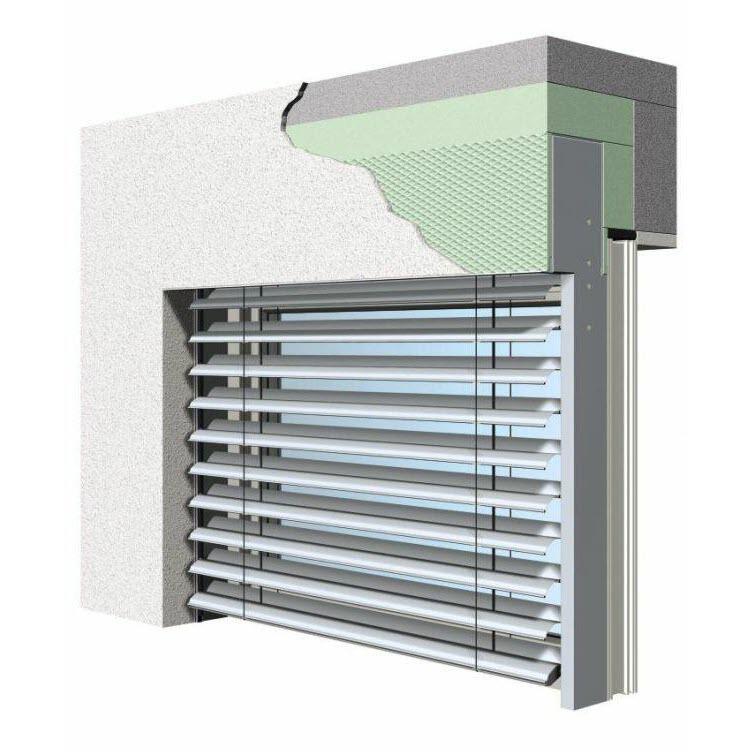

- Möglicher Unterputzeinbau
- Schienenführung für zusätzliche Stabilität
- Pulverbeschichtete Konstruktion in vielen Farben erhältlich
- 13 Lamellenfarben nach RAL, weitere gegen Aufpreis
- Maximale Fläche bei Kurbel: 8 m²
- Maximale Fläche bei Motor: 20 m²
- Mit integriertem Insektenschutz-Rollo bestellbar
- Max. Fläche bei Ausführung mit Fliegengitter: 4,5 m²
- Mit Kastenisolation XPS -Platte auf der Innenseite erhältlich (Z-70 Iso-20)
- Manuelle Bedienung mit Kurbelstange
- Motorische Bedienung SOMFY

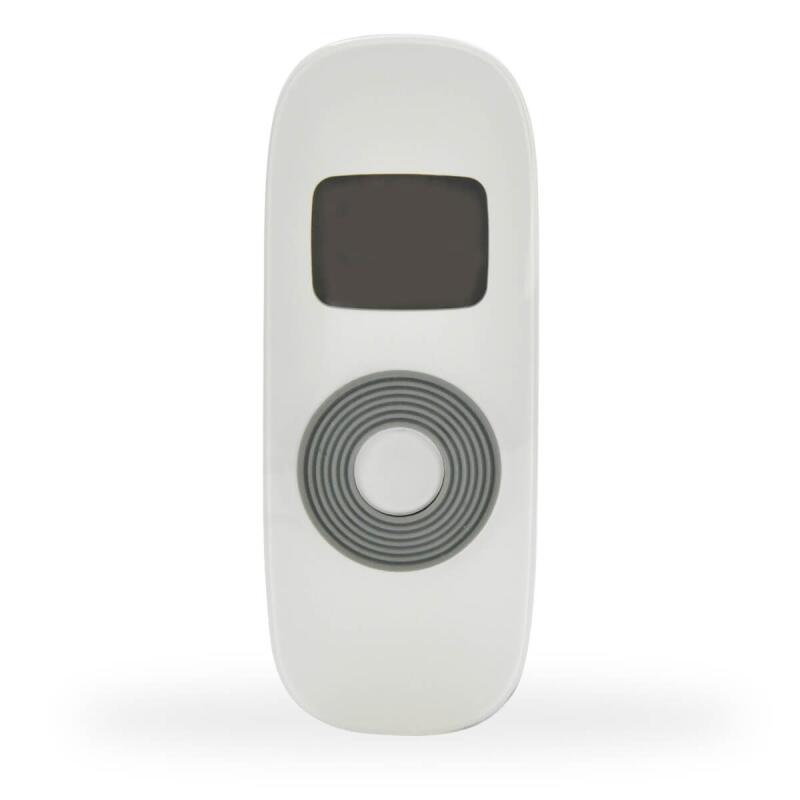

- Motorische Steuerung per Fernbedienung (1 Stk. steuert bis 15 Raffstores)
- Freie Anzahl an zusätzlichen 15 Kanal Fernbedienungen bestellbar
- Insektenschutz Schiebetür auf Anfrage
- Motorische Steuerung mittels Wandtasten. Wandschalter (nicht mitgeliefert) besorgt der Kunde passend zu seiner individuellen Ambiente.
Zulässige Maße
| Raffstore Comfort Ausführung |
Vorbaukasten Gesamttiefe |
Unterputzkasten Gesamttiefe |
Führungsschiene Tiefe |
Dämmung Innenseite Isolationstiefe |
Freitragende Ausführung Gesamtbreite |
Zusätzliche Fixierung der Box Gesamtbreite |
Freitragende Ausführung Gesamthöhe |
|---|---|---|---|---|---|---|---|
| Z-70 | 147 mm | 150 mm | 77 mm | - | 2000 mm | 5500 mm | 5000 mm |
| Z-70 Iso-20 | 171 mm | 174 mm | 101 mm | 20 mm | 2000 mm | 5500 mm | 5000 mm |
| Z-70 mit Insektenschutz-Rollo | 190 mm | 200 mm | 125 mm | - | 1800 mm | 1800 mm | 2600 mm |
| Z-70 Iso-20 mit Insektenschutz-Rollo | 205 mm | 215 mm | 150 mm | 20 mm | 1800 mm | 1800 mm | 2600 mm |
| Z-70 mit Insektenschutz-Schiebe | 190 mm | 200 mm | 125 mm | - | 2000 mm | 3800 mm | 2600 mm |
| Z-70 Iso-20 mit Insektenschutz-Schiebe | 205 mm | 215 mm | 150 mm | 20 mm | 2000 mm | 3800 mm | 2600 mm |
