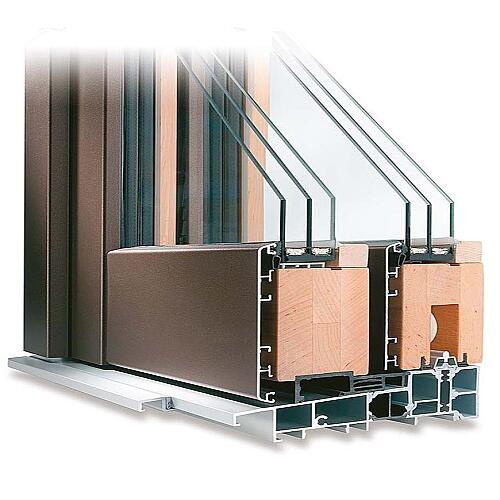

Wood sliding door Natura Solid 110

In window construction, hardware refers to the components that enable the window to be opened and closed. It therefore comprises the locking mechanism on the opening side of the window sash and the corresponding keeps in the frame, as well as the hinges on the opposite side of the window sash. All of the mechanics that allow a window sash to be opened, and in the case of a tilt-and-turn window to be turned or tilted, are also part of the hardware. In professional terminology, the window handle used to operate the hardware is not counted as part of the hardware itself, but is often also "meant" when hardware is spoken of.

The term Zarge (outer frame) denotes the fixed part of the frame that is built into a window opening and within which the movable part of a window pivots on hinges. In everyday speech it is also called the Fensterstock, or window frame (Fensterrahmen) as opposed to the window sash. In window construction, by contrast, both the outer frame and the window sash belong to the window frame. The same nomenclature applies to doors, where one speaks of a door or window casing (Zarge).

The term spacer refers to the window components that form the transition between the glass surface and the frame profile. They are also responsible for the distance between the individual glass panes of a multiple glazing unit, hence the name. In order to achieve a good U-value and to significantly minimise heat losses at the edge seal, modern spacers are no longer made of aluminium, but of flexible structural foam, composite plastic or plastic-coated stainless steel. These are used when a window is to be produced with what is known as a "warm edge". Passive house standard windows are only possible with such modern spacers.

In window and door construction, frame depth refers to the depth of the frame structure required within the masonry. It is stated in millimetres and, on modern triple-glazed windows, is at least 70 millimetres, though often as much as 90 millimetres. Older windows usually have a shallow frame depth. When replacing windows, it is important to bear in mind that modern, multiple-glazed windows have a greater frame depth than the old ones being replaced.

Windows and doors should protect against rain, wind, noise and also against burglars. All these objectives are served by the seals in the rebate, where a distinction is made between rebate seals and centre seals. Most windows and balcony or patio doors are fitted with both types of seal. The seals are made of an elastic and hard-wearing plastic. A rebate seal is fitted on the inside and/or outside at the rebate of the window profile. The seal closes the gap between the window sash and the window frame seamlessly, preventing cold outside air from entering and stopping the warmth from escaping the room. The rebate seal also improves the sound-insulation values of the windows and doors. Thanks to the special construction of the rebate seals, water – whether condensation or rainwater that has penetrated – is effectively channelled to the outside.

Modern windows and doors are constructed to keep the greater part of street noise outside. The sound insulation values (the sound reduction index) indicate how effectively the sound damping of a building component works.

The standard DIN 4109 "Sound insulation in building construction" sets out the requirements for sound insulation and defines the sound insulation classes. The sound insulation value is given in decibels (dB).

Example: the sound insulation value, or sound reduction index, of a window with insulating glazing is 32 dB Rw,P (or Rw p). The designation Rw denotes the reference value and P stands for the test value (tested in the laboratory). The sound reduction index of 32 dB Rw,P indicates that, in the laboratory measurements, the tested building component reduced the noise level by 32 dB.

In construction, the rule applies that the test value of a building component (Rw,P) should be 5 dB higher than the actual value (Rw). On average, a modern window with standard insulating glazing lets through only about 10% of the noise.

Sound insulation classes and the associated sound reduction index:

• Class 1 25-29 dB
• Class 2 30-34 dB
• Class 3 35-39 dB
• Class 4 40-44 dB
• Class 5 45-49 dB
• Class 6 over 50 dB

For living and working spaces, sound insulation class 1 is the standard; for schools, classes 2 and 3; for hospitals, 3 and 4.

Watertightness against driving rain describes the resistance of a building element (e.g. a window, glass wall or door) to driving rain, i.e. rainfall whose vertical direction of fall is altered by the wind. It is evident that the dynamic pressure exerted by driving rain is determined not only by the intensity of the rain itself, but also by the strength of the wind.

When windows and doors are tested for their watertightness against driving rain, the building elements are sprayed under a pressure of 0 to 600 Pa for between 15 and 55 minutes. The classification is made using numbers and letters, whereby the number from 1 to 9 corresponds to the test pressure and the letter (A or B) to the respective test method. A - unprotected windows and doors (e.g. not protected by a canopy), B - a partially protected type of construction.

The SWISSPACER warm edge spacer has become a byword for the effective prevention of thermal bridges on windows. It provides a special insulating effect at the edge of the insulating glass unit and determines the spacing between the panes. This prevents heat from escaping to the outside via the edge of the glass in winter and reduces the formation of condensation.

Windows have to meet ever more requirements, and development has advanced considerably over recent decades, particularly in the field of thermal insulation. Multi-pane insulating glass is one example of this. However, it can only deliver its full efficiency when a warm edge is built into the window by means of spacers. Triple glazing in particular benefits from an effective edge seal, which reduces energy loss to a minimum and supports the window's thermal insulation.

A RAL colour refers to standardised colours from a colour collection that has been authoritative for colour selection for over 85 years and is distributed by RAL GmbH under the name RAL Classic.

Each colour in the colour catalogue is assigned a four-digit colour number. The first digit is systematic: 1 - yellow, 2 - orange, 3 - red, 4 - violet, 5 - blue, 6 - green, 7 - grey, 8 - brown, 9 - white/black shades, and the remaining three digits are chosen sequentially.

For a surcharge, almost all products, such as timber windows, timber-aluminium windows, aluminium windows, roller shutters and external window sills, can be produced in a RAL colour of your choice.

Originally, only small panes of glass could be manufactured, and glazing bars served as dividers. Nowadays, glazing bars are used predominantly for aesthetic reasons.

A distinction is made between three different types:

Genuine or glass-dividing bars

This refers to a type of bar that divides the glass, so that each bar field is fitted with an individual pane. Windows made up of several small panes are rarely found these days. This method of construction closely resembles the original way of manufacturing and is therefore also very labour-intensive. In addition, heat loss is greatest with the glass-dividing bar variant. Every interruption of the pane is in direct contact with the outside of the window, and this creates a cold bridge.

Imitation or bonded-on bars

The so-called “Viennese bar” (Wiener Sprosse) is counted among the imitation glazing bars and represents the affordable alternative to genuine glazing-bar windows. This type of bar is visually indistinguishable from glass-dividing bars and is ideal for recreating slim bars. The surface-mounted bars are simply bonded onto the glass and merely sealed with silicone. For this reason, they have no effect on the insulating properties of the glazing.

This type of bar looks particularly attractive on country-style houses or restored buildings that are listed as protected monuments. They give the entire building an exceptional and historic appearance.

Internal bars

Internal bars are inserted as a bar grid inside the glazing. This eliminates the labour-intensive upkeep of the bar construction. A particular feature of bars located within the cavity between the panes is that, with triple glazing, the bar is placed in only one of the two cavities between the panes.

Today, glazing-bar windows are used predominantly in the renovation of listed buildings and, in new builds, serve more as a design feature. In doing so, they lend the window and the entire building a distinctive character.

At Fensternorm, you can choose as standard between internal bars in a width of 18 mm or 8 mm and surface-mounted bars in a width of 26 mm. Of course, we will endeavour to fulfil (almost) any other size requirement you may have.

The thermal transmittance coefficient, abbreviated U for unit of heat transfer (the unit of heat transfer), replaced the k-value in the course of European standardisation. Measuring the U-value determines the heat loss from the inside to the outside, specifically per square metre and per hour at a 1° temperature difference.

A window's thermal insulation depends on the frame material, the glazing and its airtightness. A window's insulating properties are determined by the U-value. The lower this figure, the better the thermal insulation.

For windows, three U-values are generally distinguished. The thermal transmittance coefficient Uw refers to the entire window. This value incorporates the U-values for the glazing Ug and the frame Uf.

• Uf = U frame – is the U-value of the window frame.
  The Uf-value is determined by measurement for the frame-and-sash combination. The visible width of the profile is taken as the area for calculating the Uw-value.

• Ug = U glazing – is the U-value of the glazing.
  The Ug-value depends on the type of gas filling in the cavity between the panes, the distance between the panes and the number of panes.

• Uw = U window – is the U-value of the entire window.

The thermal transmittance coefficient for windows is generally calculated for the standard window size of 1.23 m x 1.48 m. Please note that larger glass areas achieve better values, since glazing allows better U-values than the frame material.

Under OIB Guideline 6 of 2011, the Uw-value for standard glazing must not exceed 1.4 W/m2K. The German Energy Saving Ordinance (EnEV) of 2014 limits the thermal transmittance coefficient to 1.3 W/m2K for an existing building. Windows with a Uw-value no greater than 0.8 W/m2K are considered suitable for passive houses.
