Lift and slide door Reynaers MasterPatio

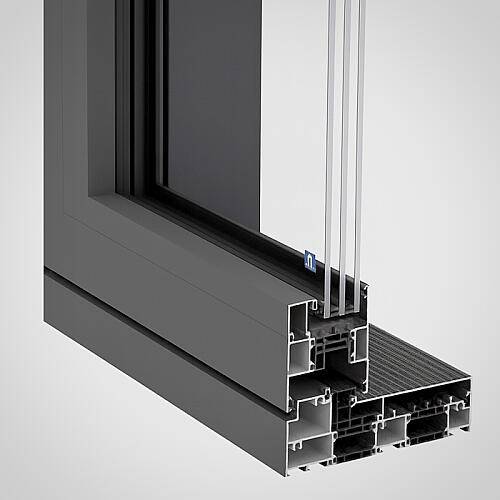

The aluminium lift-and-slide door MasterPatio
- Lift-and-slide system with optimized thermal insulation
- Slim profile views for maximum transparency
- High stability for large sash sizes
- Burglar resistance up to class RC2
Insulation
Ud up to 0,8 W/m²K
Security
up to RC2
Building depth
Profile: 180 mm
€ 4820 , - /Stk. € 6025 , - /Stk.
2-tlg. HS 3000/2200mm
*Beachten Sie unseren QUANTITY DISCOUNT
Directly from the manufacturer
FENSTERNORM - manufacturer and deliverer of windows and doors of high-quality Trocal and Schüco profiles.
Technical details
- Basic frame depth: 180 / 283 mm
- Sash depth: 77 mm
- Uf-value: 1.4 W/m²K, depending on configuration up to Ud-value 0.8 W/m²K
- Maximum element sizes: 3600 mm height / 3000 mm width per sash
- Maximum sash weight: 600 kg, fixed elements up to 1200 kg
- Maximum overall element size: 6500 x 3000 mm
- High flexibility for project applications thanks to integrated profile connection
- Suitable for glazing thicknesses up to 62 mm
- Wide variety of configurations based on 1-, 2- and 3-track frames
- Integrated innovative drainage systems
- For increased security, an RC2 version is available on request
- Flat threshold for high comfort
Product Features
Aluminium – a modern material for the highest standards
The MasterPatio lift-and-slide door belongs to the latest generation of aluminium sliding systems from Reynaers and combines design, comfort, and energy efficiency at the highest level. Thanks to its exceptionally slim profile sightlines, the door appears extremely elegant and ensures maximum transparency and light penetration in every room. Aluminium as a material is particularly low-maintenance, durable, and stable – even with large element sizes, the construction remains dimensionally stable and reliable.
Panoramic View and Modern Design
With sash sizes of up to 3.6 m in height and 3 m in width, MasterPatio enables impressive glass surfaces that create an open living atmosphere and a seamless transition between indoors and outdoors. The slim frames emphasize the spaciousness of the glazing and give the architecture a modern and minimalist appearance.
Excellent Thermal Insulation and Sound Protection
Thanks to optimized insulation bars and the option of using double or triple glazing up to 62 mm, MasterPatio achieves Ud-values of up to 0.8 W/m²K. This makes the system suitable for energy-efficient and sustainable building projects. In addition, tested sound insulation values of up to Rw 44 dB provide high acoustic comfort, which is particularly beneficial in urban environments.
Flexibility and Variety of Options
The system is available in numerous configurations: as a monorail, with 1-, 2- or 3-track frames, with corner solutions without fixed mullions, or with a barrier-free threshold. Whether for new construction or renovation – MasterPatio adapts flexibly to individual requirements.
Individual Design
The surfaces are available in a wide range of colours – from classic RAL shades to textured special finishes. This allows the door to be integrated harmoniously into existing façades or to stand out as a modern design element.
Weitere Bilder
Referenzen
Referenzobjekte, die von Hebeschiebetüren von Aluminium profitieren.
Kundenmeinungen
Dietmar Kistler
Wien, Österreich
Sie haben sich für Reynears MasterPatio entschieden?
Planning a new project or looking to modernise your home? Get in touch with our team – we’ll be happy to prepare your individual offer for a custom-made Reynaers MasterPatio lift-and-slide door.
Fällt die Entscheidung schwer?
Our FENSTENORM team is happy to assist you, should you need any further information.
