Wooden window Natura Line 78
Wooden window Natura Line 78
- Controlled surface water drainage
- Optimum protection against weathering effects
- Natural and renewable raw material
- Excellent insulation values by nature
Insulation
Uw up to 0,76 W/m²K (with Ug 0,5 W/m²K)
Security
up to RC2
Installation depth
78 mm
€ 432 , - /Stk. € 540 , - /Stk.
1 wing window DKR 900/1100mm
*Beachten Sie unseren QUANTITY DISCOUNT
Directly from the manufacturer
FENSTERNORM - manufacturer and deliverer of windows and doors of high-quality Trocal and Schüco profiles.

Technical characteristics
- 78 mm sash or stock window profile
- 3 layered spruce wood construction
- Certified woods from Münchinger "made in Germany"
- Different wood options upon enquiry: larch, meranti and oak
- A circumferential double seal
- A silicone seal for fixing of the glazing
- Thermal conductivity : Uf-value = 1,2 W/m²K
- Up to Uw = 0,76 W/m²K (with Ug 0,5 W/m²K)
- Glazings: double/ 32 mm; triple/40-50 mm
- Use of special functional glasses for selection in the configurator
- Warm edge for the reducement of the build-up of condensation in the edge - optional
- A WINKHAUS window fitting with basic security
- Optimal wood protection through wrap-around stick cover
- A thermally isolated rain rail for safe water evacuation
- A wood coating with opaque water paints based on RAL
- Water coating in transparent colours for a visible wood structure
- For more security - up to Class RC2 (WK2) possible
- A choice between different door rails 8, 18 and 26 mm
- Also available as wood aluminium composite (Solid 96)
- Branded door handles from HOPPE in white, silver or bronze available
Individual design

Glazing
- Double
- Triple
- ESG
- VSG
- Sound insulation
- Insert panels

Special types
- Triangle
- Conical
- Round arch
- Segmental arch
- Round/Semicircular
- Diagonal

Opening types
- Tilting
- Rotary tilt
- PSK
- Folding
Product features

Natural substances from an own production
The wooden windows Natura Line 78 are made of spruce wood or optionally of larch, meranti, oak or pine. We recommend the use of wood because it has natural insulation qualities. The wooden profile involves innovative solutions that don't only form the appearance but make maintenance quite easy and increase the thermal and acoustic parameters. The carefully chosen type of wood, the micro ventilation and the energy saving package of the discs, the enormous choice of possible colours, design and sizes according to the wishes of the customers lead to the result that the wooden window Natura Line 78 is a perfect offer for those of you who wanted to have wooden windows of the best quality for the money.

The rough material
We strive to offer to our customers the best quality. That's why we choose our partners very carefully. For high-quality production of a profile, we use faultless wood raw materials from certified suppliers. As standard wooden windows are produced from spruce wood. If you're ready to accept a higher price you can optionally choose between meranti, oak or pine. The wood originates from sustainably maintained forests.

The fittings
In the field of window construction, WINKHAUS is an important exporter for fittings locking systems and safety accessories. The innovative systems of WINKHAUS are intelligently thought out and especially powerful. Rain drainage channels guarantee reliable wood protection and safe drainage of surface water. The profiling of the frame drains is added to the folding through precisely fitting end covers.
System endcaps enclose the rain protection bar in a form-fitting way and together with the sealing lips, they achieve tolerance compensation of 1mm.
Sashes and frames
System end caps enclosure the rain rails in a form-fit way and together with the sealing lips they provide tolerance compensation of 1mm. Sashes and frames of a window are exposed to unusually large amounts of snow, ice, UV radiation and hail. The sash cover profiles protect the worn-out wood of the bottom transom in an effective and long-lasting manner. The mounting is simple and is carried out via a clip holder.

The sealings
Sash seals serve as functional seals against air permeability and for driving rain security a decisive influence for insulation and sealing.
The double circumferential sash seal made of silicon which we incorporate is characterised by very high tolerance compensation, comfortable locking process and longevity. The durable, temperature resistant material ensures increased density. The sash sealing optimises the handling by reducing the closing pressure and minimises possible noises during opening and closing.

Timber coating
In order to preserve timber in the long-term, the profiles must be processed correctly during production. Therefore, we recommend you opt for covering colours and lasures. Lasures are non-covering coatings which preserve the natural colour of the wood.
Teknos is one of the leading producers of waterborne coating systems for wood processing industries in many different countries. That's why we trust our partner when it concerns wood coatings. The varnishes are characterized by solidity and at the same time flexible surfaces, longevity and high transparency in addition to great covering ability. Thick film lasures don't close the wood pores, but rather prevent wear and humidity regulation. This inhibits the wood from drying out and accordingly no cracks get formed.

Solid wood processing with WENIG
Individually designed windows and special sizes are a reality nowadays. The rising demand for high quality wooden aluminium windows calls for a first-class production technology. To produce wooden profiles FENSTERNORM relies on the worldwide biggest producer of machinery and systems for solid wood processing -WENIG.
Several sessions and frames are produced in one cycle. This includes the process of cross-cutting separation of glass strips, drawing, splitting, profiling and surround-milling.

What else you should know
Aluminium is used in window and facet construction due to its low weight it's durability and especially because of its numerous applications. In order to preserve the decorative appearance of aluminium components, it's necessary to clean them at certain intervals which depends on the degree of pollution throughout the surrounding environment and the personal preferences of the inhabitants. A painted wood window should be repainted if you want to preserve the natural appearance in the long-term. If you paint wooden frames for a second time, we recommend you use the same type of coating as the first time.

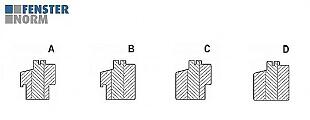

If you are not looking for a specific type of wooden window frame, the standard frame is produced with the most common shape (type B).
