Kunststofffenster Trocal 76 Classic
PVC Window Trocal 76 Classic: all-rounder and absolutely reliable
- The new 76 system - main runner at Trocal
- Sturdy and economical PVC profile
- Reliable thermal and noise insulation
- Elegant, contemporary appearance
- Highly tamper-proof up to RC2 Standard
- Exterior in all RAL colors, thanks to proCoverTec technology
Insulation
Uf = 1,1 W/m²K
Uw up to 0,76 W/m²K
Security
up to RC2
Profile system
5 chambers
€ 194 , - /Stk. € 228 , 24 /Stk.
1 wing window DKR 900/1100mm
*Beachten Sie unseren QUANTITY DISCOUNT
Directly from the manufacturer
FENSTERNORM - manufacturer and deliverer of windows and doors of high-quality Trocal and Schüco profiles.
Technical details
- Optimum building depth of 76 mm
- 5 chamber system with additional steel reinforcement
- Thermal insulation value of Uf = 1,1 W/m²K
- Ug value with standard glazing from 1,1 W/m²K
- Ug value up to 0,6 W/m2 K with triple glazing possible
- An innovative circumferential double sealing system
- Can be equipped up to 2 (RC 2 / WK 2) resistance class
- Sound insulation up to 47 dB with triple glazing up to 48 mm
- Narrow face width - depending on implementation up to 108 mm
- Exterior in all RAL colors possible with proCoverTec technology
- Branded fittings from WINKHAUS
- Glass thickness up to 48 mm possible
- Joining profile height up to 30 mm possible
- Improvement of thermal, security and noise protection values through additional glazing
- Use of ornamental glass and glazing with shutters by request
- Warm edge spacer from Swisspacer/ Thermix available
- Window handles in white included; more colours available
- Decorative foil for bulk orders upon the request possible
- Available with aluminium cover - Trocal 76 AluClip Classic
Individual design
Glazing
- Double
- Triple
- ESG
- VSG
- Sound insulation
- Insert panels
Special types
- Triangle
- Conical
- Round arch
- Segmental arch
- Round/Semicircular
- Diagonal
Opening types
- Tilting
- Rotary tilt
- PSK
- Folding
Product features
Trocal - pioneer in the field of PVC windows
The windows have been on the market since the mid-50s and remain very popular. The name Trocal stands for TOP qualitative PVC window profiles. This is the brand under which name the first ever PVC window appeared on the market in 1954. Since then Trocal has set the standards in the field of heat, noise insulating and burglar-proof windows.
With the windows system, Trocal 76 Classic the engineers managed to combine the benefits of the larger 88-mm-building depth with those of the common 70-mm-building-depth.
Benefits of the PVC window profiles
PVC windows are becoming more and more popular. The lower cost and perfectly isolated window frames are maintenance free, durable, energy efficient and easy to design. PVC window frames can look the same as at the first day after 50 years. Here are the main benefits at a glance:
- Good value for money
- Low-maintenance
- Extremely long durable
- Provide excellent noise and heat insulation
- Environmentally friendly production and recycling
- Energy efficient and passive house capable
A weather seal system for high energy efficiency
Trocal 76 Classic is equipped with an innovative weather seal system which is characterized by excellent heat insulation qualities and an optimal building that of 76 mm. With an Ug-value of only 1.1, W/m2K with standard glazing the window keeps the coldness outside and ensures for a cosy ambience in working and living rooms.
First-Class heat insulation reduces heating costs and contributes to environmental protection. At the same time the Trocal 76 Classic guarantees, with its rebate ceiling system, proper air circulation and minimises the danger of mould formation.
Concentrate on working and enjoy a peaceful atmosphere
Noise from the street shouldn't be underestimated as a stress factor and a health risk.
Only rooms which offer reliable noise protection feel comfortable to people. In a protected space office life is somewhat less hectic, and workers can relax after work. The PVC window profile Trocal 76 Classic makes the reduction of noise insulation values up to 47 dB Rw, P a realistic goal.
It means, in fact, that up to 90% of external noise doesn't manage to penetrate your home. The result is a quiet room atmosphere without the feeling of isolation.
PVC-windows with individual design
With the profile Trocal 76 Classic windows can be adapted to the look of facades, to personal preferences of a customer and designed regarding the architectural features of a building. The buyers can choose between many variations and styles:
- Combination of French casement and casement, or casement and blind frame;
- Balcony or patio windows;
- Shaped, arches, round or triangular windows;
- Up to 48 mm thick double and triple glazing;
- Expandable with aluminium facing shell;
More light thanks to narrow face widths
The new Trocal 76 Classic allows the optimum use it of sunlight. The narrow face widths reduce light loss. Bright and lightly rooms with a minimum and artificial lighting create a balanced and relaxed atmosphere. Customers can order roller blinds or roller shutters for their Windows or balcony doors. The elegant aesthetic of the window profile Trocal 76 leaves makes the windows appear light and elegant.
Because of its reduced building depth, the PVC profile can be used for new projects or for the renovation of old buildings. The built-in steel profiles in frames and wings guarantee for high stability and longevity.
Increased anti-burglar protection and long service life
The windows Trocal 76 Classic can be upgraded up to Resistance Class RC 2 and this is an obstacle that's difficult to overcome. These kinds of windows are weather resistant, and they can survive decades without a significant maintenance report. Mild care with lukewarm water is enough to make the windows look like new again.
Ordering Fenster Trocal 76 Classic from FENSTERNORM
FENSTERNORM produces and sells windows, balcony and terrace doors made of high-quality PE of the type Trocal 76 AD. Customers can choose between double and triple glazing and as an additional option, there are Swisspacer “warm edge” and security glass available. Window handles in white are included in the price and prices for the colours and lockable handles are available upon enquiry. Every customers' order goes through the control of our factory and is carefully checked by our specialists for practicality and statics.
In case of additional questions and changes by our side, we contact our customers immediately.
Weitere Bilder

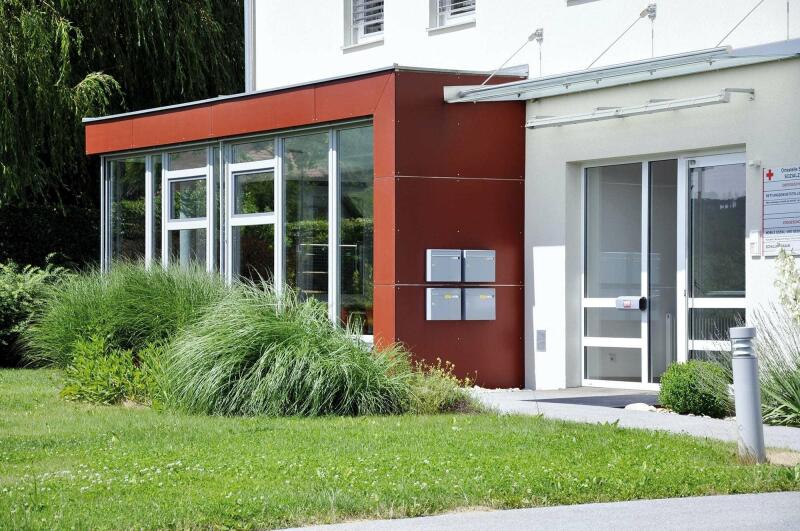

Referenzen
