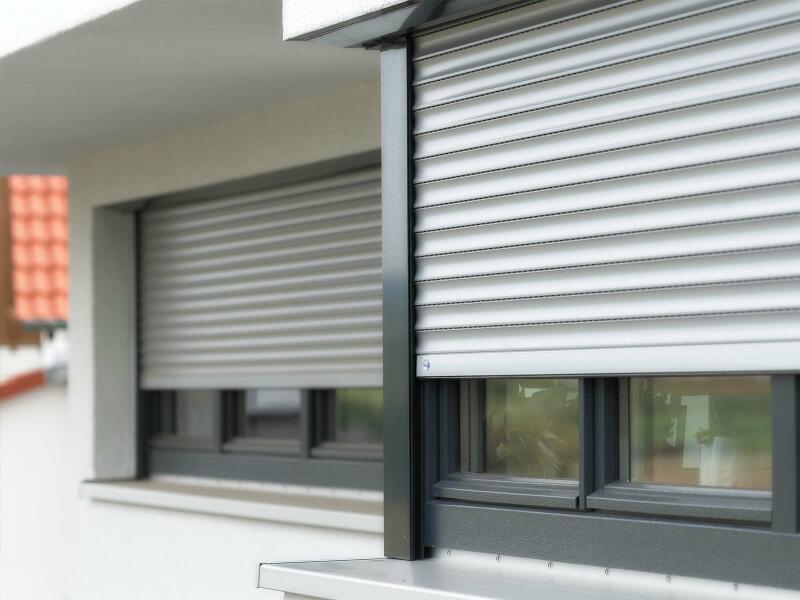

Front-mounted concealed roller shutter Integro
Roller shutters Integro - "invisibly" integrated into the facade
- Flush mounting (under-plaster box)
- Completely invisible when open
- Anti-lifting device for burglary protection
- Integral fly screen optional
- An optional integrated insect screen
- Manual, electric and radio control
- Stable aluminium slats filled with PUR foam
-
Time switch for recorded motors optional
Slats
aluminium reinforcement

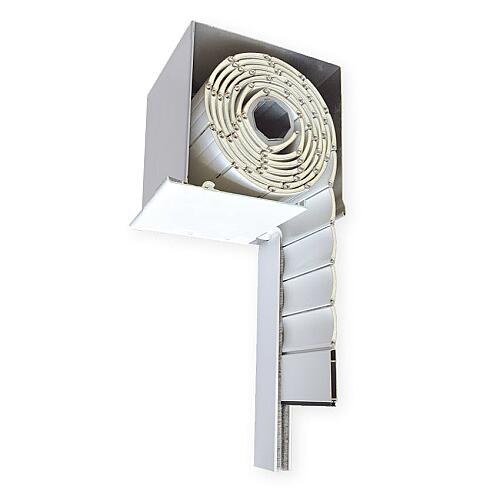

Box
non-visible, flush-mounted
€ 184 , - /Stk. € 230 , - /Stk.
1400/1200mm Gurtzug
*Please note our QUANTITY DISCOUNT
Directly from the manufacturer
FENSTERNORM - manufacturer and supplier of sun protection systems at the best price.
Technische Details
- Maximum size: 5,8 m²
- Max. size with insect screen: 4,5 m²
- Integrierter Rollo-Insektenschutz im Kasten optional
- Lamellengröße: 39 mm x 8,5 mm
- Lamellenfüllung: Polyurethan-Schaum
- Alu-Führungen mit einer Breite von 53 mm
- Manuelle Bedienung: Gurt- oder Schnurzug
- Ab 4 m² nur Kurbel, Motor oder Motor mit Funksteuerung
- Funkbedienung von bis zu 15 Rollladenmotoren
- Handsender mit Zeitschaltuhr optional
- An inspection flap to the underside of the box
Kastenhöhe und Kastentiefe:
- bei Rollladenhöhe bis 1500 mm: Höhe und Tiefe 137 mm
- bei Rollladenhöhe bis 2000 mm: Höhe und Tiefe 150 mm
- bei Rollladenhöhe bis 2500 mm: Höhe und Tiefe 165 mm
- bei Rollladenhöhe bis 3100 mm: Höhe und Tiefe 180 mm
- bei Rollladenhöhe bis 3400 mm: Höhe und Tiefe 205 mm
Kastengröße bei Ausführung mit Insektenschutz:
- bei Rollladenhöhe bis 1100 mm: Höhe und Tiefe 150 mm
- bei Rollladenhöhe bis 1500 mm: Höhe und Tiefe 165 mm
- bei Rollladenhöhe bis 2000 mm: Höhe und Tiefe 180 mm
- bei Rollladenhöhe bis 2500 mm: Höhe und Tiefe 205 mm
